DH-BTG Bottle Wall Thickness Tester Two set of Measuring Head

Introduction:

DH-BTG bottle wall thickness tester is an ideal measuring instrument for PET beverage bottles, cans, glass bottles, aluminum cans and other packaging containers; it is suitable for accurate measurement of wall thickness and bottom thickness of packaging containers with complicated texture. It has the advantages of convenience, durability, high accuracy, and low price. Widely used in glass bottle, plastic bottle / barrel manufacturing enterprises and pharmaceutical, health care products, cosmetics, beverages, edible oil, alcoholic beverage manufacturing enterprises.

Features:

1. Customized measuring rods for irregular specimens

2. Suitable for glass bottles, mineral water bottles, etc.

3. Bottle bottom and bottle wall thickness test completed in one machine

4. Super standard high precision meter

5. Mechanical design is simple and durable

6. Flexible measurement of large and small samples

7. LCD digital displaying

Specification:

Measuring range:0-12.7mm(other thickness can be custom made),0-25.4mm(optional)

Resolution:0.001mm

Diameter of sample:<=150mm

Height of sample:<=300mm

Weight:15kg

Dimension:400*220*600mm

Standards:

GB2637-1995,GB/T2639-2008,YBB00332002

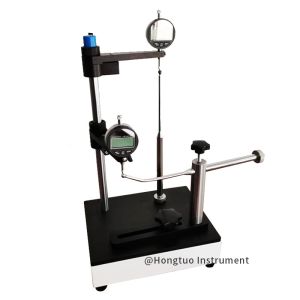

DH-BTG Bottle Wall Thickness Tester Two set of Measuring Head Images
