Compression Tester, Compression Deflection Test, Compression Testing Equipment for Sponge WDW-5S
This machine is a new material testing machine combining electronic technology with software technology and mechanical transmission. It adopts stepper motor as precision power source. It adopts imported precision ball drive screw and guide rod, adopting imported grade 0.5. The precision force value sensor is then accurately measured by a high-precision force value measurement system. This series of models adopts single space structure, which is mainly used for material testing with load less than 10kN. It has firm structure, convenient operation and simple maintenance. It is an ideal test instrument for mechanical testing in various factories and enterprises. It has a wide and accurate loading speed and force range. It has high precision and sensitivity for measurement and control of load, deformation and displacement. It has stress, strain and displacement modes, and can find the maximum force value, tensile strength and bending strength, compression strength, modulus of elasticity, elongation at break, yield strength and other parameters, suitable for tensile, compression, peeling, tearing, shearing, etc. mechanical properties test and analysis.
Application industry:
Rubber and plastics; metrological quality inspection; commodity inspection and arbitration; technical supervision department; colleges and universities; scientific research laboratory; basic materials laboratory; metallurgical steel; machinery manufacturing; electronic appliances; automobile production; textile chemical fiber; wire and cable; packaging materials and food; Instrumentation; medical equipment; petrochemical; civil nuclear energy; aerospace; ceramic materials; magnetic materials industry; energy batteries; basic materials;
Standard:
ASTM, ISO, DIN, GB and other international standards.
Application products:
| >Plastic >Film >Fiber and thin wire >Adhesive >Foam material
>Tape | >Elastomer >Connector >Biomaterials >Wood and paper products >Metal foil >Metallic line | >Below medium strength metal >Oil bearing
>Ceramic >Part >Fastener >Composite material |
Main Feature:
- Meet most of the mechanical properties test
- Completely compact structure, high rigidity design, durable
- Easy to operate, anyone can operate
- High accuracy, certified by a third-party testing agency
- High speed, low vibration, low noise motor drive
- Multilingual application function, adapt to different countries’ using
- Capabilities with graph, data sheet, report viewing and printing
- Automatic returning function after test completed
| - Automatic calculation of maximum force, minimum force, average force, maximum deformation, elongation, strength, etc.
- Has a variety of curve modes such as stress-strain, force-displacement, force-time, intensity-time
- Has test mode functions such as tensile, flexural, compressive, flexural, adhesive, tear, peel, elongation, etc.
- With mechanical travel switch; emergency stop switch; over current, over voltage, under current, under voltage, leakage overload protection; software overload limit protection; breakpoint shutdown protection and other multiple protection devices
- Optional: small deformation metal extensometer, large deformation displacement tracker
|
Technical Instruction:
| Brand | HongTuo |
| Model | WDW-S |
| -005 | -01 | -02 | -05 | -1 | -2 | -5 | -10 |
| Capacity | KN | 0.05kN | 0.1 kN | 0.2 kN | 0.5kN | 1 kN | 2kN | 5kN | 10KN |
| KG | 5kg | 10kg | 20kg | 50kg | 100kg | 200kg | 500kg | 1000kg |
| lb | | | | | | | | |
| Structure | Double rail structure | Three double rail structure |
| Unit switching | G,Kg,lb,N,KN |
| Displacement unit switching | Inch cm mm |
| Test machine level | 1class |
| Force accuracy | Within ±0.5% |
| Force decomposition | 1/200 000 |
| Force Power magnification | X1,X2,X5,X10,X20,X50,X100.,etc.Seven-speed automatic shifting |
| Displacement resolution | 0.05mm |
| Displacement accuracy | Within ±1% |
| Deformation measurement range | 2%～100%FS |
| Deformation indication accuracy | Within ±1% |
| Large deformation measurement range | (0～800)mm |
| Large deformation resolution | 0.05mm |
| Large deformation indication error limit | Within ±1% |
| Maximum test speed | 500mm/min；optional maximum 1000mm/min |
| Minimum test speed | 0.1mm/min |
| Speed accuracy | within ±1% |
| Beam travel Measuring height | standard | No grip testing stroke:920mm |
| optional | No grip testing stroke:1320mm |
| Fixture configuration | One set of tensile grip；can choose other grips |
| Returning method | Manual or automatic selection, automatically return after the test ends or manually return to the initial position |
| Stop method | 1.Maximum break value automatically stop 2.Upper and lower limit safety setting stop |
| Safety devices | 1.Mechanical limit switch protection 2.Emergency stop switch emergency brake |
| Overload protection | Over 10% of maximum load, automatic machine protection |
| Accessories | 1 power cord; 1 manual; 1 certificate |
| Optional accessories | Anti-splash device (protective door); printer;software |
| Powder supply | 220V.AC/ 50HZ; 110V.AC/60HZ |
| Main host size/ weight | Standard model:Length*Width*Height:450mm*400mm*1160mm / Around 50KG Heightening model:Length*Width*Height:450mm*400mm*1550mm / Around 55KG |
| Packing size / weight | Standard model:Length*Width*Height:550mm*500mm*1400mm / Around 73KG Heightening model:Length*Width*Height:550mm*500mm*1800mm / Around 78KG |
|
|

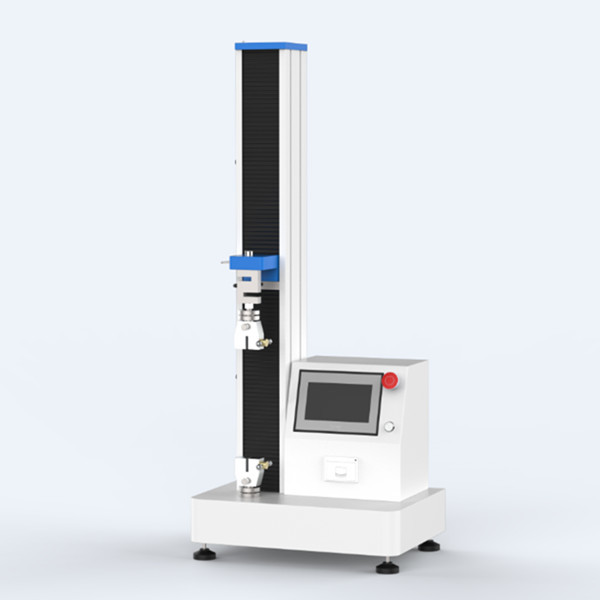

Compression Tester, Compression Deflection Test, Compression Testing Equipment for Sponge WDW-5S Images
|
